FDI-DICHTUNGEN®
|
|
|
|

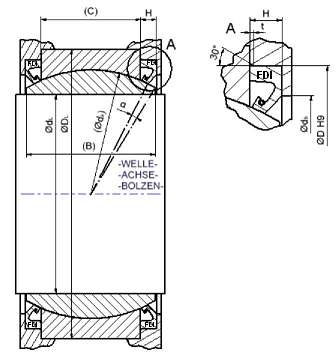

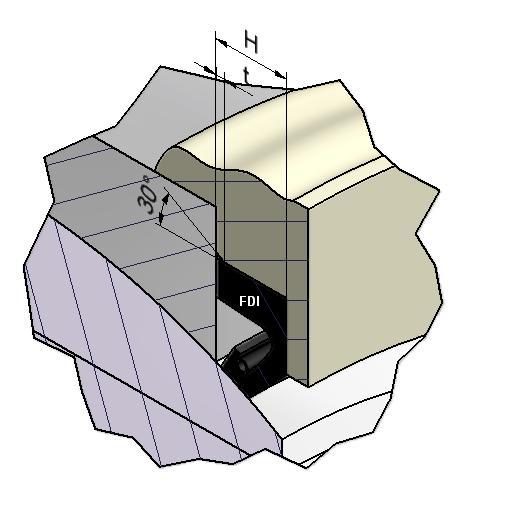

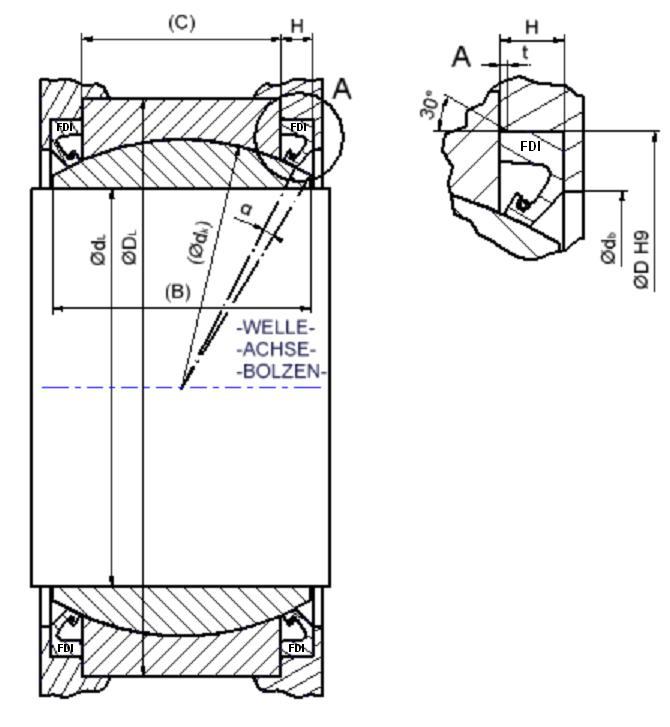

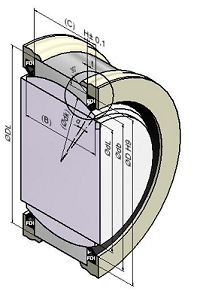

FDI® -spherical plain bearing seal |
|
GE ... UK-2RS-series
|
|
|
|
|
|
 |
 |
 |
|
|
to enlarge "click" picture
|
|
|
| CAD download (step format) |
|
| Typ |
ØDL |
ØdL |
Ødk |
Ødb
MAX |
ØD H9 |
B |
C |
H±0,1 |
t |
α |
download
step
|
| GE 50 UK-2RS |
75 |
50 |
66 |
65,6 |
79,4 |
35 |
28 |
9,5 |
1,6 |
1,5° |
CAD |
| GE 60 UK-2RS |
90 |
60 |
80 |
75 |
88 |
44 |
36 |
10 |
1,6 |
2° |
CAD |
| GE 70 UK-2RS |
105 |
70 |
92 |
87 |
100 |
49 |
40 |
10 |
1,6 |
2° |
CAD |
| GE 80 UK-2RS |
120 |
80 |
105 |
98 |
115 |
55 |
45 |
12 |
1,6 |
1,5° |
CAD |
| GE 90 UK-2RS |
130 |
90 |
115 |
107 |
120 |
60 |
50 |
13 |
1,6 |
2° |
CAD |
| GE 100 UK-2RS |
150 |
100 |
130 |
123 |
140 |
70 |
55 |
13,3 |
1,6 |
3,5° |
CAD |
| GE 110 UK-2RS |
160 |
110 |
140 |
135 |
155 |
70 |
55 |
12 |
1,6 |
3° |
CAD |
| GE 120 UK-2RS |
180 |
120 |
160 |
148 |
165,1 |
85 |
70 |
12,7 |
2 |
3° |
CAD |
| GE 140 UK-2RS |
210 |
140 |
180 |
168 |
200 |
90 |
70 |
16 |
2 |
4° |
CAD |
| GE 160 UK-2RS |
230 |
160 |
200 |
190 |
215,9 |
105 |
80 |
15,9 |
2 |
5,5° |
CAD |
| GE 180 UK-2RS |
260 |
180 |
225 |
214 |
240 |
105 |
80 |
16 |
2 |
4,5° |
CAD |
| GE 200 UK-2RS |
290 |
200 |
250 |
240 |
270 |
130 |
100 |
16 |
2 |
5,5° |
CAD |
| GE 220 UK-2RS |
320 |
220 |
275 |
259 |
282,5 |
135 |
100 |
19,05 |
2 |
6° |
CAD |
| GE 240 UK-2RS |
340 |
240 |
300 |
290 |
320 |
140 |
100 |
16 |
2 |
6° |
CAD |
| GE 260 UK-2RS |
370 |
260 |
325 |
313 |
342,9 |
150 |
110 |
19,05 |
2 |
5° |
CAD |
| GE 280 UK-2RS |
400 |
280 |
350 |
338 |
371,7 |
155 |
120 |
25,4 |
3 |
4° |
CAD |
| GE 300 UK-2RS |
430 |
300 |
375 |
361 |
390 |
165 |
120 |
20 |
2,2 |
5° |
CAD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| material |
temperature range |
chemical
resistance as: |
| FDI® 1002 |
- 40°C up to +120°C |
NBR |
| FDI® 2002 |
- 40°C up to +170°C |
HNBR |
| FDI® 3002 |
- 30°C up to +200°C |
FKM (FPM) |
|
|
|
| order-description: |
FDI® - spherical plain bearing seal (ØD x H ) |
|
for GE ........ UK-2RS
|
|
|
|
|
The data shown above is based on long lasting experience in the manufacturing and use of sealing elements. As there are many unknown possible parameters and conditions in practice, which may limit standard performance, it is requested that the user runs practical tests. Except as expressly stated, Friedrich‘s liability, expressed or implied, is limited to the published selling price of our defective item.
© Issued under copyright and must not be used for any purpose without written permission from the copyright owner.
|
|
|
|
FDI® and FDI-DICHTUNGEN® are registered trademarks of Friedrich GmbH
|
|
|
FRIEDRICH GmbH - Höffgeshofweg 2 - 47807 Krefeld, Germany - www.fdi-dichtungen.com
Tel.: ++49-(0)2151-835770 - Fax: ++49-(0)2151-835777 - e-mail: info@fdi-dichtungen.com
|
|
|
|
© 2013/1 by FDI® - Design
|
|
|
|
FDI-025-GE-UK-2RS_e
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
