| FDI® - shaft seal, split - joining on site |
|
model: XF8
|
|
|
|
|
|
|
| Incl. bonding set |
 |
|
|
|
|
|
|
- for single and multiple application
|
with grooves for lubrication: |
|
|
| XF8 ( split + bonded ) |
|
|
|
Example for application:
|
|
 |
|

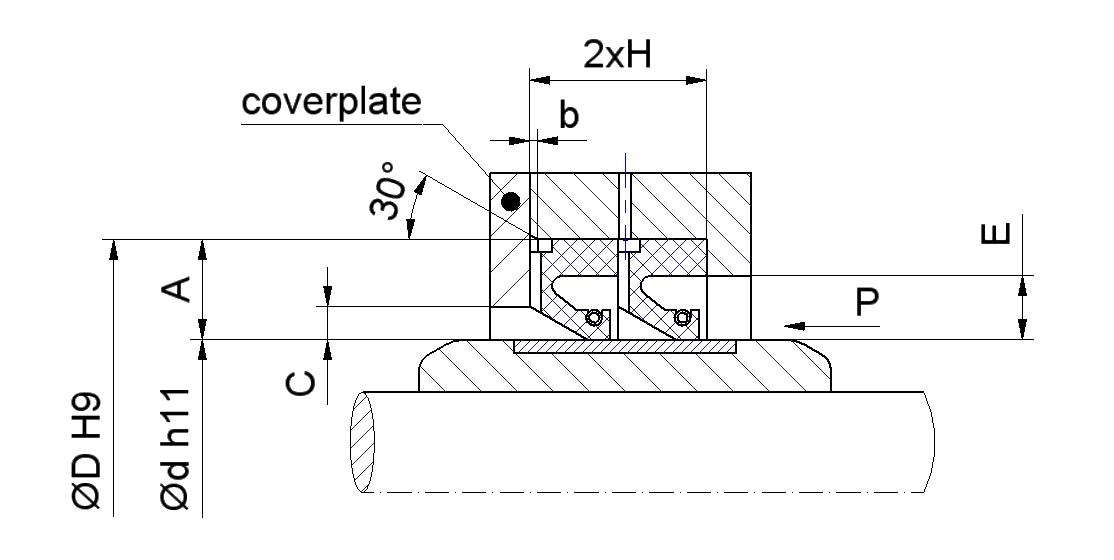

figure 2
|
 |
|

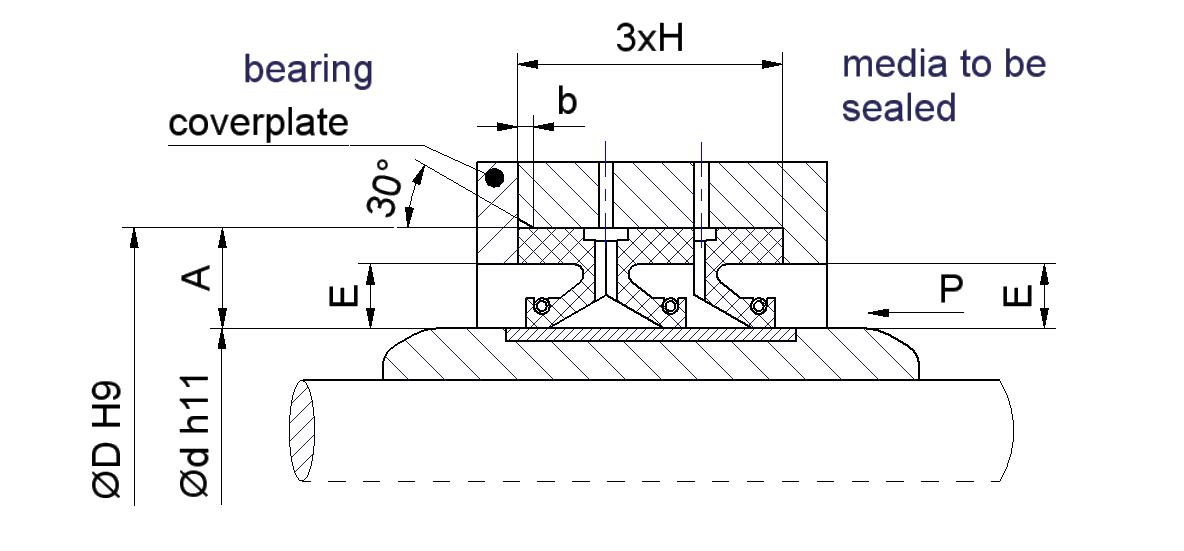

figure 3
|
 |
|
P = pressure side
|
|
|
housing dimension:
| H (mm) |
H |
2 x H |
3 x H |
|
tolerance |
| to 19 |
±0,1 |
±0,1 |
±0,1 |
| up 20 |
±0,2 |
±0,2 |
±0,2 |
|
|
|
|
| C (mm) |
E (mm) |
b (mm) |
| a x 0,2 |
A x 0,5 |
H x 0,12 |
|
|
|
|
|
| lubrication: |
requested! (above approx. ca. 0,2m/s ) |
| media to be sealed: |
foods stuff, oil, grease, water, suspension with hard particles. |
|
|
| model |
radial runout
|
operating pressure max.
|
|
|
mm / max.
|
Bar
|
MPa
|
| XF8 |
split + bonded |
1,5
|
1
|
0,1
|
|
|
Ø range of
d (mm) |
cross section *
A=D-d H
2 |
radal runout
mm max. |
axial movement
mm unlimited |
| <50 |
11 10 |
0,6 |
∞ |
| >50 - 100 |
16 12,5 |
0,75 |
∞ |
| >100 - 250 |
20 16 |
0,9 |
∞ |
| >250 - 400 |
22 20 |
1,0 |
∞ |
| >400 - 600 |
25 22 |
1,2 |
∞ |
| >600 |
32 25 |
1,5 |
∞ |
|
|
further profiles on request.
The indicated data are limits and can´t be combined!
|
|
|
material:
|
temperature
°C
min. max.
|
speed
m/s max.
|
chemical
resistance
|
| FDI® 1002 |
-40 +120 |
15 |
as NBR |
| FDI® 2002 |
-40 +150 |
25 |
as HNBR |
| FDI® 3002 |
-30 +150 |
30 |
as FKM (FPM) |
|
|
|
|
|
Lead in champfer
|
(length of lead chapfer mm)
|
| W=30° |
W=25° |
W=20° |
W=15° |
|
|
Ø d (shaft Ø mm)
|
Ø dm max
|
L
|
L
|
L
|
L
|
R
|
|
up 30 - 40
|
d -3,0
|
2,6 |
3,2 |
4,1 |
5,6 |
3,0 |
|
up 40 - 50
|
d -3,5
|
3,0 |
3,7 |
4,8 |
6,5 |
3,5 |
|
up 50 - 70
|
d -4,0
|
3,5 |
4,3 |
5,5 |
7,5 |
3,5 |
|
up 70 - 95
|
d -4,5
|
4,0 |
4,8 |
6,2 |
8,4 |
4,0 |
|
up 95 - 130
|
d -5,5
|
4,8 |
5,9 |
7,6 |
10,3 |
5,0 |
|
up 130 - 240
|
d -7,0
|
6,0 |
7,5 |
9,6 |
13 |
6,0 |
|
up 240 - 400
|
d -11,0
|
9,5 |
11,8 |
15,1 |
20,5 |
10 |
|
< 400
|
d 12,5
|
10,8 |
13,4 |
17,2 |
23,3 |
10 |
|
|
size list*
| d |
D |
H |
A |
| (mm) |
(mm) |
(mm) |
(mm) |
|
|
|
|
|
|
|
|
| * sizes on request |
|
|
|
|
