FDI®-Sealing Elements
FDI® -UNIVERSAL - SHAFT SEAL
type 01-02-04-07-08-10-11

3D step -->CAD - download / 2D dxf --> CAD - download
dimensions of housing for type 01 - 02 - 04 - 07 - 08
C(mm)
E (mm)
b (mm)

H (mm)

up to 19
above 20

Ød

ØD

 A x 0,2
A x 0,5
H x 0,12

tolerance

± 0,1
± 0,2

h11

H9
dimensions of housing for type 10 - 11
measurement schedule
d h8 (mm) C mm H (mm) b (mm)

< 50

 1 10 -0,1 1,2

50 - 100

 1 12,5 -0,1 1,5

100 - 250

 1 16 -0,1 2,0

250 - 400

 1 20 -0,2 2,2

400 - 600

 1 22 -0,2 2,5

> 600

 1,5 25 -0,2 3,2

E = A x 0,5 (mm)

ØD = H8
lead in champfer
(length of lead champfer mm)
W=30° W=25° W=20° W=15°
Ød (shaft Ø mm) Ø dm max. L L L L R
up 30 - 40 d-3,0 2,6 3,2 4,1 5,6 3,0
up 40 - 50 d- 3,5 3,0 3,7 4,8 6,5 3,5
up 50 - 70 d- 4,0 3,5 4,3 5,5 7,5 3,5
up 70 - 95 d- 4,5 4,0 4,8 6,2 8,4 4,0
up 95 - 130 d- 5,5 4,8 5,9 7,6 10,3 5,0
up 130 - 240 d- 7,0 6,0 7,5 9,6 13 6,0
up 240 - 400 d-11 9,5 11,8 15,1 20,5 10
> 400 d-12,5 10,8 13,4 17,2 23,3 10

dimension FDI® -shaft seal

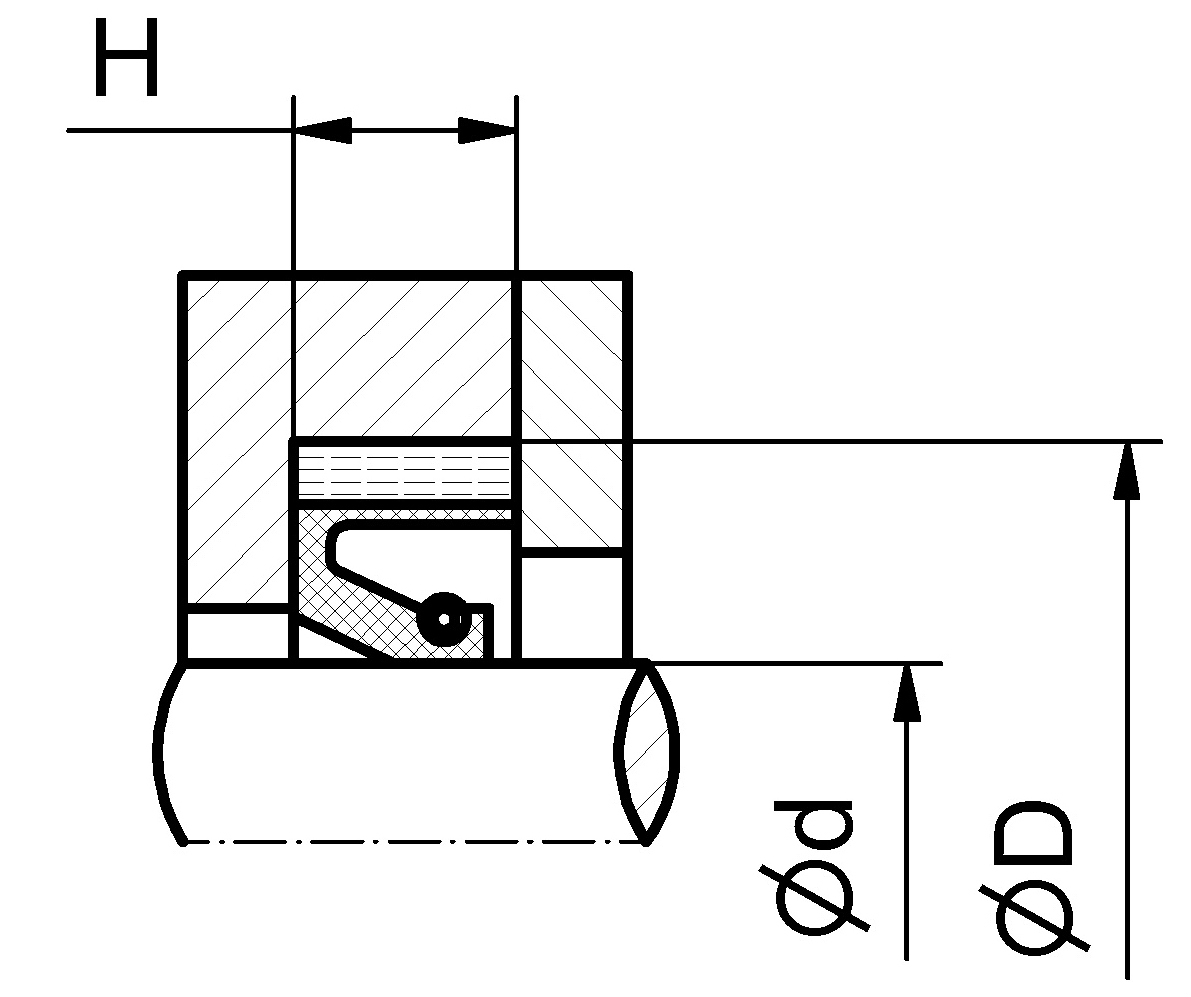

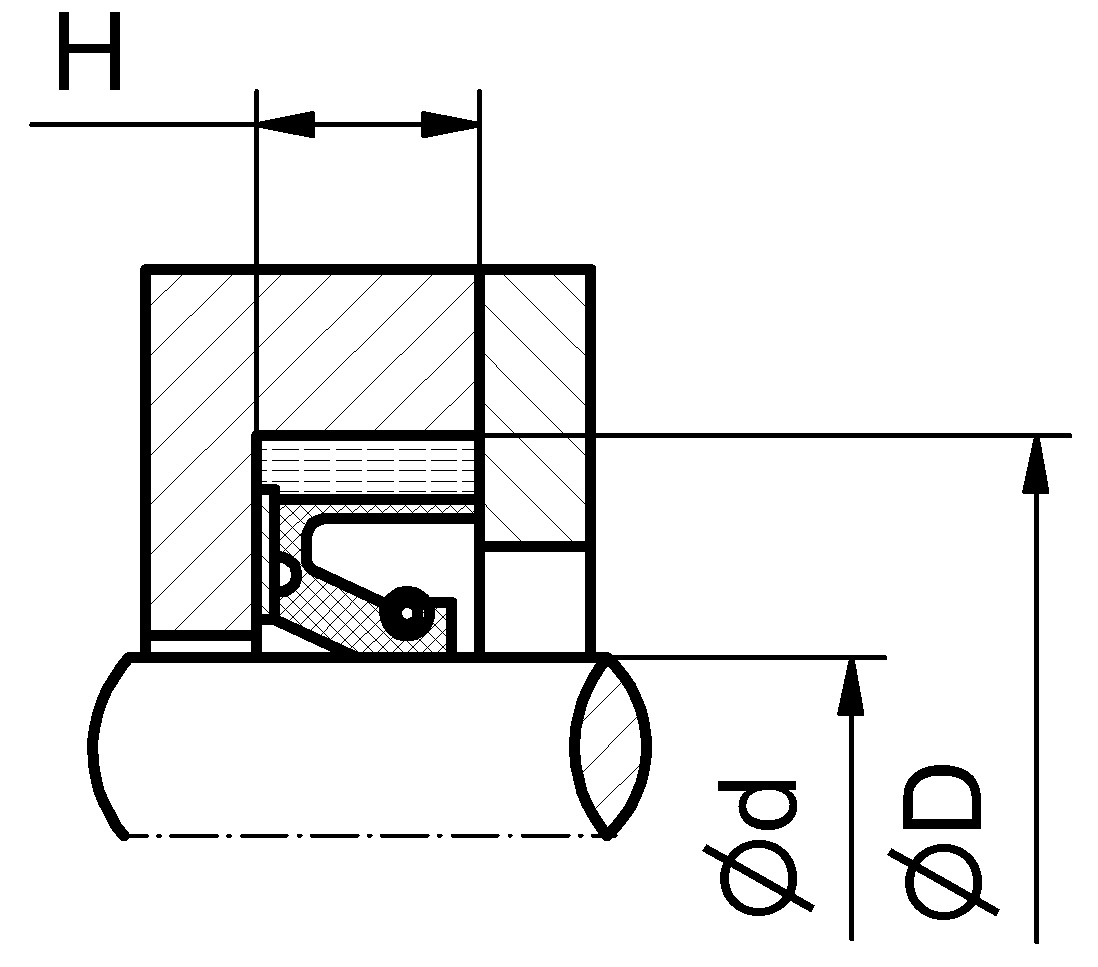

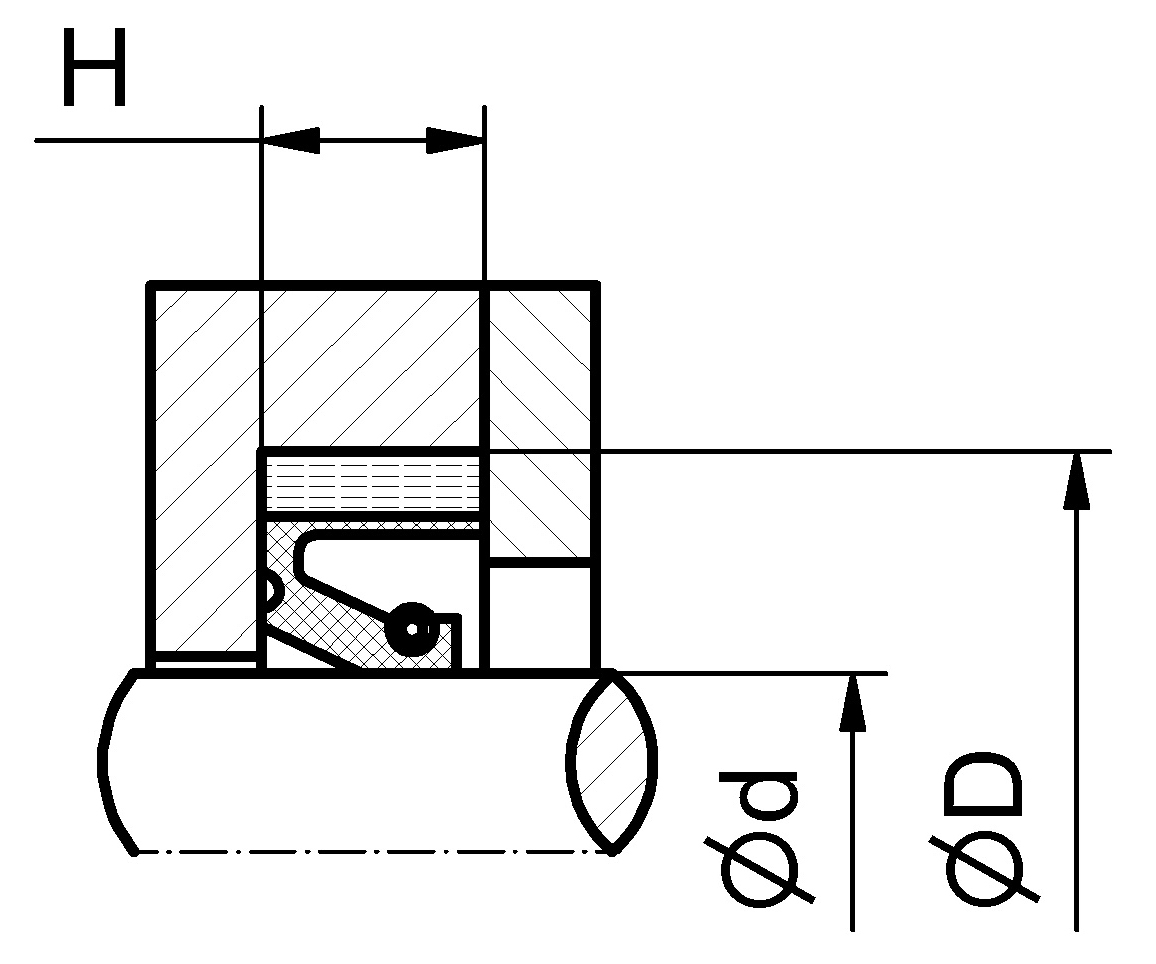

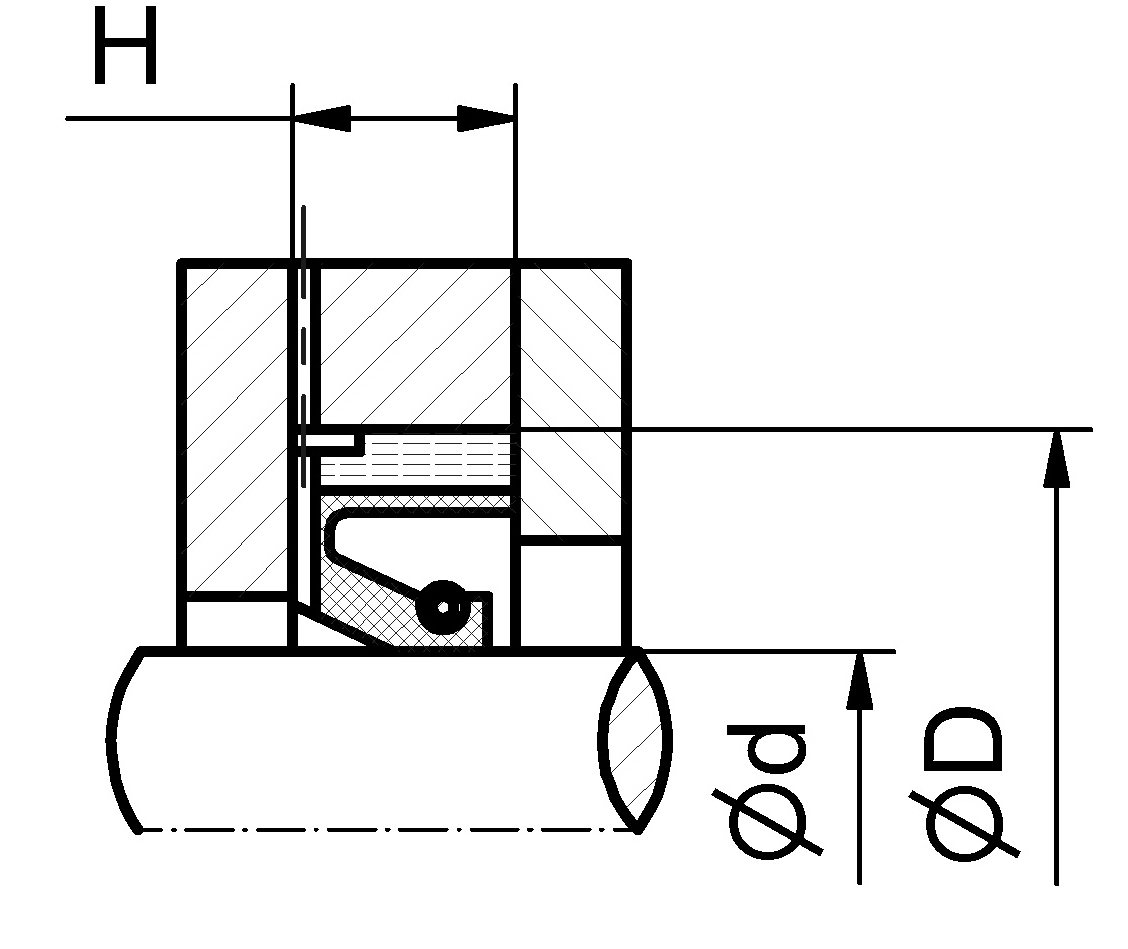

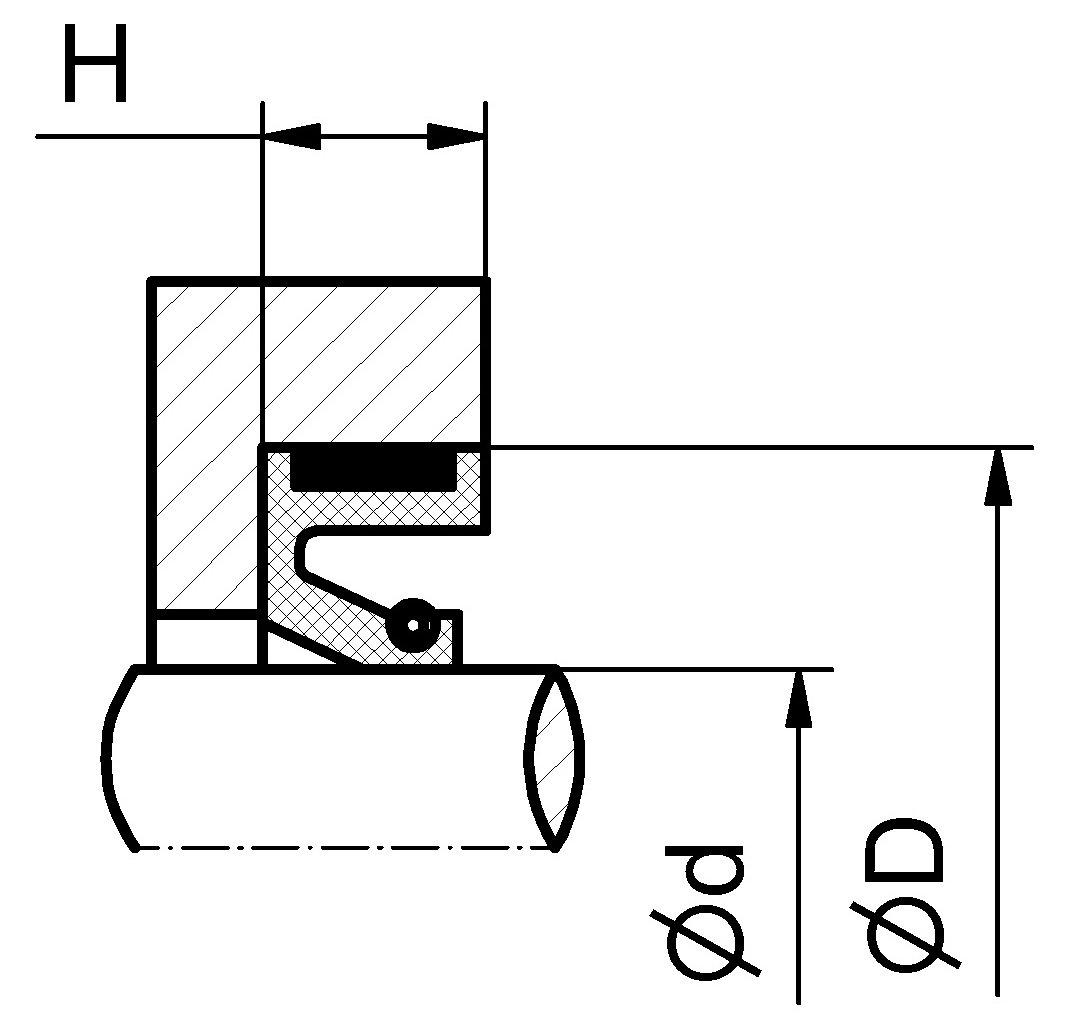

025 TYP 01 / 07 025 TYP 02 / 08 025 TYP 04 025 TYP 10 025 TYP 11
  Vorschau Vorschau Vorschau Vorschau Vorschau
d
D
 H
01 / 07
      02 / 08 04 10 11
 The data shown above is based on long lasting experience in the manufacturing and use of sealing elements.
As there are many unknown possible parameters and conditions in practice, which may limit standard
performance, it is requested that the user runs practical tests. Except as expressly stated, Friedrich‘s liability, expressed or implied, is limited to the published selling price of our defective item.
© Issued under copyright and must not be used for any purpose without written permission from the copyright owner.

FDI® and FDI-DICHTUNGEN® are registered trademarks of Friedrich GmbH

© 2020 by FDI® - Design
FDI-025-1-11_e
